Ha spectrum of VV Cephei - HD 208816 - SAO 19753 [M2epIa-Iab + B8:eV] - 2017-09-05

Specs

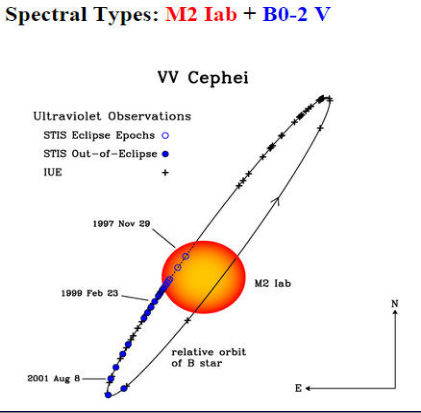

VV Cephei is an eclipsing binary star system with a M2 and a B8 star
The emission lines are caused by a disk around the B star, probable an accretion disk with material feeded by the supergiant M star.
There is a campaign throug the next eclipse 2017 to 2019. Start of eclipse was 4th August 2017. More information about this:
Telescope: Celestron C11 11" SC, f/10, d=280mm
Spectrograph: Lhires III, 2400gr, slit 23u    Resolution: .0693 Å / pixel, resolving power = 18600
Camera: SBIG STT-8300M    Acquisition software: SbigControl     Guiding software: DMKguider
Date: 5th September 2017,  19:25 - 20:39 UT, JD 2458002,33

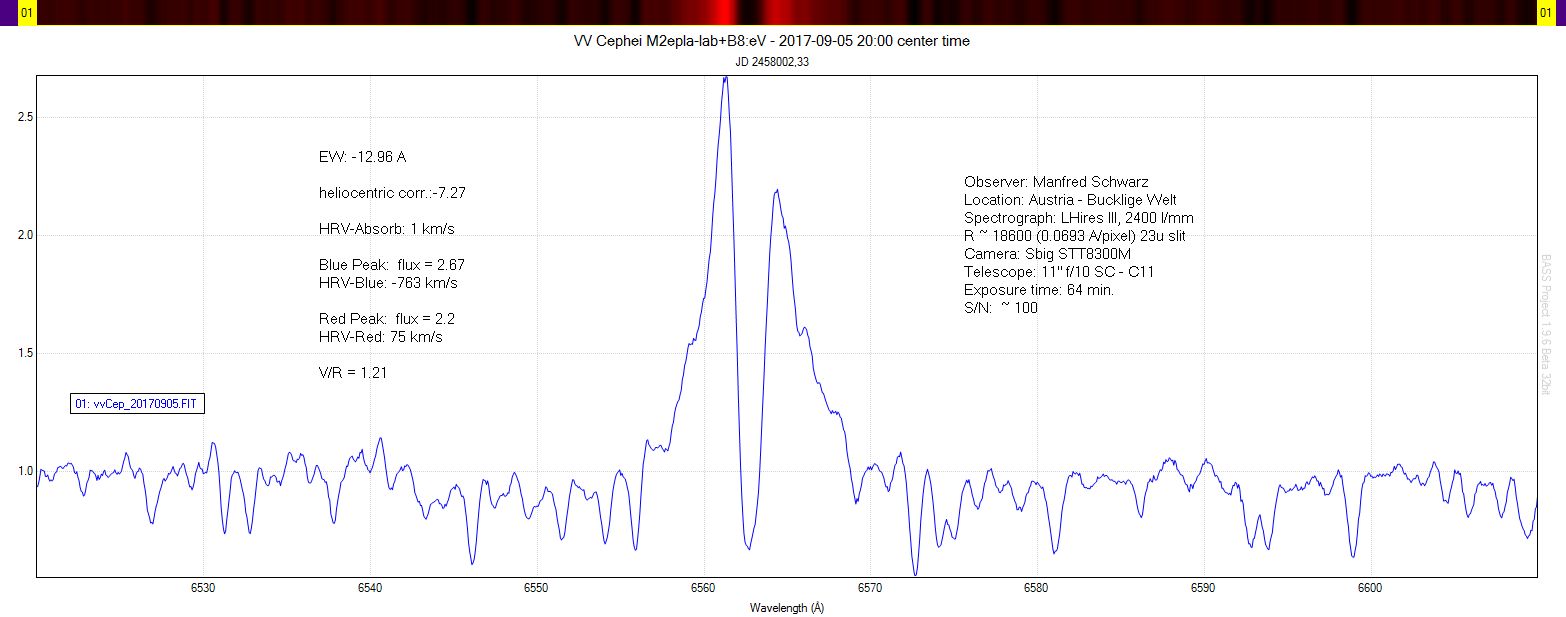

Spectra with 2400 lines/mm, processed with BASS project

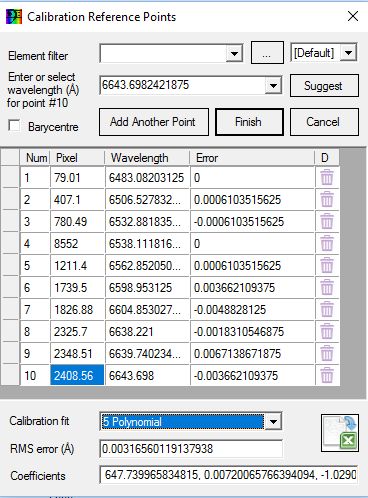

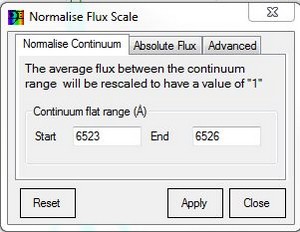

Ha calibrated with internal Ar-Ne lamp, normalized flux
Exposure time: 13  x 300s
Dark- and Flat corrected and stacked with PixInsight

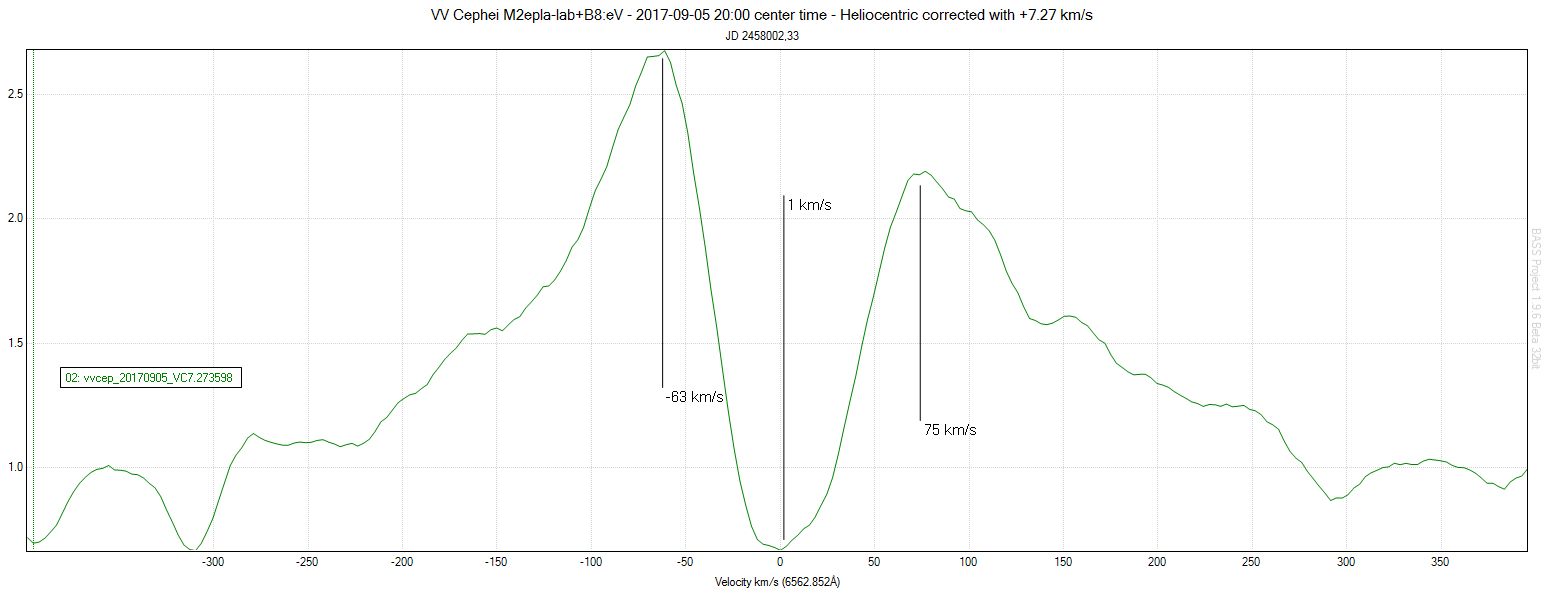

Calibrated, RV-measure with BASS project
Download spectrum 1D FIT: vvCep_20170905.FIT
Download spectrum FIT (RAW):  vvCep_20170905_13x5min_RAW.fit
Download BASS project bundle: vvCep_20170905.bun
Download complete project(12.5MB): vvCep_20170905.zip
Stellar data (Wikipedia.org):
Constellation: Cepheus, RA: 21h 56m 39.1s, Dec: +63° 37′ 32.0″
v = 4.91 mag, Mv = -6 mag
Distance: 4900 ly, 1500 pc
Mass: A ~ 25, B ~ 20 MΘ
Radius: A ~ 1600 - 1900, B ~10 RΘ
Luninosity: A ~ 200000-320000, B ~ 10000 LΘ
Surface Temperature: A: ~3800, B: ~25000 K
