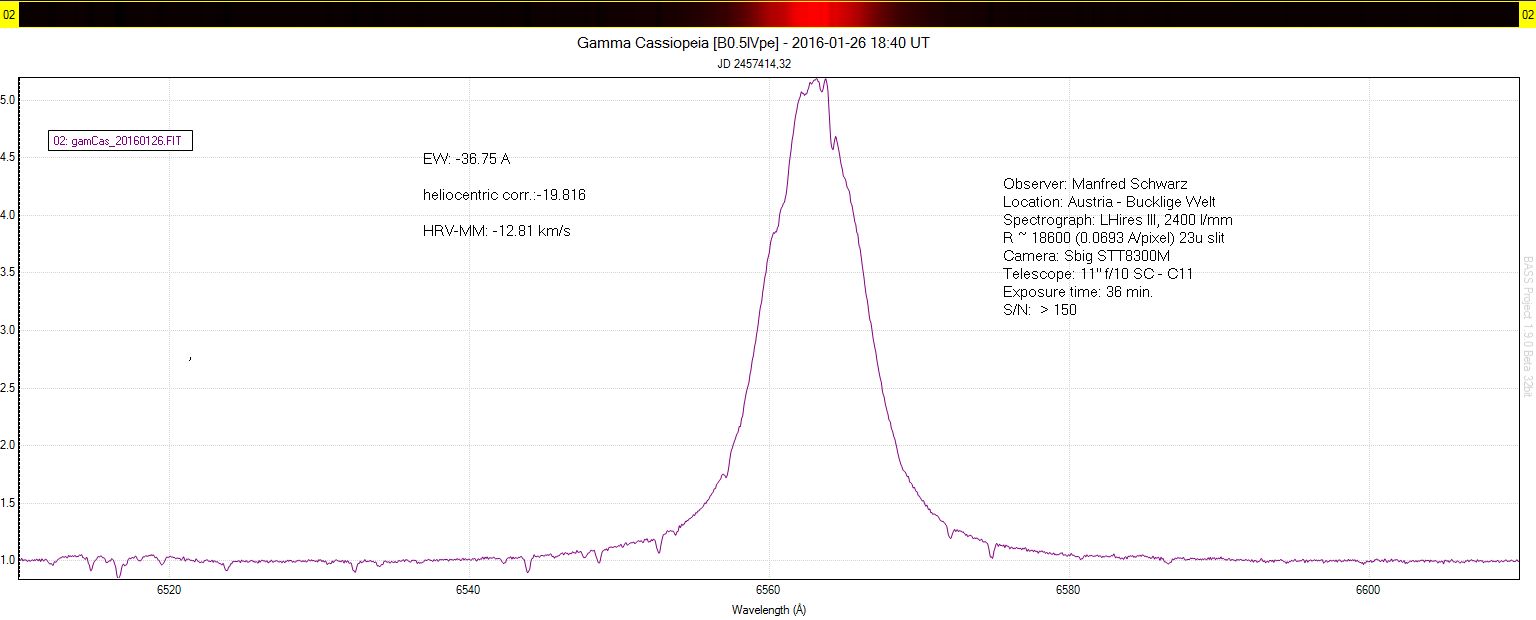

Ha spectrum of Gamma Cassiopeiae - Tsih - HD 5394 - SAO 11482 [B0IVe] - 2016-01-26
Specs
 |  |
Tsih is a typical Be star, that means there is a disk of gas around the star. The emission lines are caused by this disk.
The star rotates very fast (~ 300km/s). This could be one reason for this disk.
Telescope: Celestron C11, f/10, d=280mm
Spectrograph: Lhires III, 2400gr, slit 23u Resolution: 0.0693 Å / pixel, resolving power = 18600
Date: 26. January 2016, 18:18- 19:06 UT, JD 2457414.32

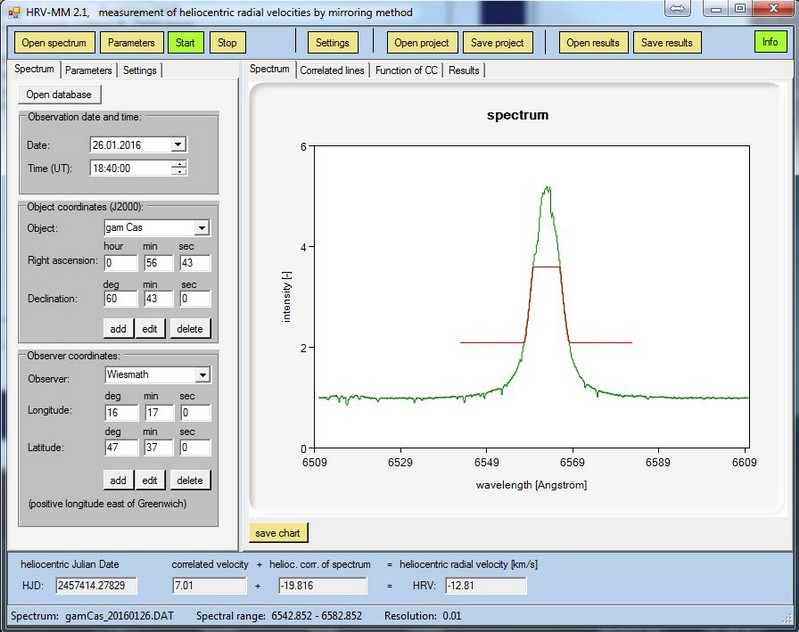

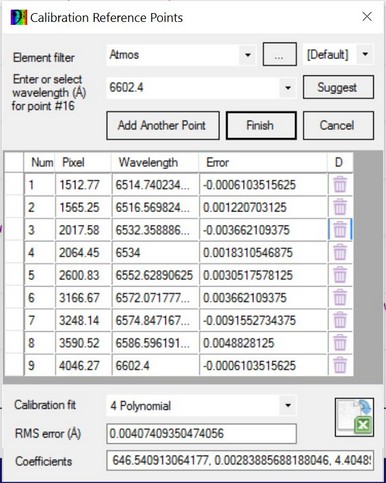

Spectra with 2400 lines/mm, processed with BASS project Calibrated with on atmospheric H2O lines, normalized flux 9 images, each 240 seconds (36 minutes) Dark corrected, cropped, enlarged by factor 2 and stacked with Pxinsight RV-measure with HRV-MM2 | Download spectrum 1D FIT: gamCas_20160126.FIT Download RAW spectrum (580KB): gamCas_9x4min_RAW.fit Download spectrum 1D FIT (dry): gamcas_20160126_dry.fit Download BASS project bundle: gamCas_20160126.bun Download complete project(1.2MB): gamCas_20160126.zip |
Stellar data (Wikipedia.org):
Constellation: Cassiopeia, RA: 00h 56m 42.50108s, Dec: +60° 43′ 00.2984″
v = 2.47 mag, Mv = -4 mag
Rv = -6.8 km/s
Distance: 550 +- 10 ly, 168 +-3 pc
Mass: 19.3 +-0.1 MΘ
Radius: ~ 10 RΘ
Luninosity: 55000 LΘ
Rotational velocity: ~300 km/s
Age: 8 +-0.4 x 10^6 years
